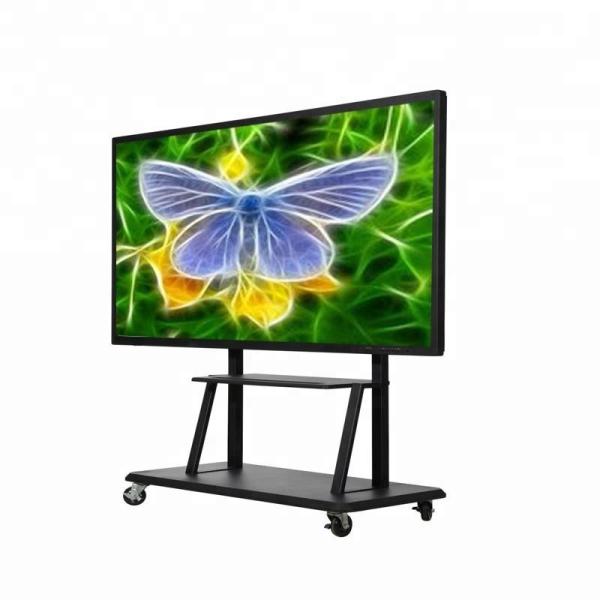

white board for meeting with touch screen
Main Features
Apply excellent quality infrared touch screen panel, super high transmittance, high anti-violence ability, resist scratch and mill, dust-proof and waterproof
High touch sensitivity, response quick, no drift
Professional chip and process technology, ensure high quality image
Industrial grade and high performance LCD panel, ensure image high definition, high brightness and dependable performance;
The case apply high strengthen steel design, appearance ultrathin, delicate and compact, have excellent performance in prevention grade and electromagnetic shielding;
In the farce, paint fine lines, smooth and uniform, integrate the color with the industrial host, have excellent anti-dust and resist-mill
Support multi-signals interfaces, also many signals inputs / outputs;
High reliability,high stability,suit to education and train, exhibition,public media,video meeting, force guarding, traffic management etc.
| LCD Panel |
Panel Brand |
AU/SAMSUNG/CMO |
| Size |
42” TFT-LCD |
| Display area |
930(W)×523.0(H) |
| Pixel Pitch |
0.4845(H)×0.4845(V) |
| Aspect ratio |
16:9 |
| Reselution |
1920×1080 |
| Color depth |
16.7M |
| View angle |
178°/178° |
| Brightness |
600cd/m2 |
| Contrast |
1000:1 |
| Response time |
<=5ms |
| Image control |
Video decoding |
3D |
| Signal Reduce Noise |
3D |
| Interlaced Separation |
3D |
| Color System |
Suport PAL/NTSC/SECAM |
| Image Code |
Standard/Sports/soft/personal settings |
| Image Adjust |
Contrast/brightness/hue/saturation/sharpness |
| Color temperature mode |
Standard/Cool/Warm |
| Zoom |
Full Screen/Zoom1/Zoom2/nonlinearity /14:9 |
| Dual Screen Functionality |
PIP/POP 4:3 |
| Audio system |
Speaker |
2×3W(4Ω) (optional) |
| Sound Mode |
Standard/Music/Movies/Personal |
| Option system |
Manu Langague |
Chinese/English/Multiple Language |
| Remote Control |
Dedicated |
| Button Panel |
Standby/Input/Menu/Left/Right |
| Input/output interface |
USB or Serial Input |
1 (for touch screen use) |
| Composite Video Input |
2(BNCX2) |
| Component (YUV) Input |
1(BNCX3) |
| S-video |
1 |
| D-15pin RGB input(VGA) |
1 |
| DVI |
1 |
| HD |
1 |
| Composite Video Output |
2 (BNCX1) |
| AV/YUV Audio Input |
1 Hole diameter Φ3.5mm |
| PC Audio Input |
1 Hole diameter Φ3.5mm |
| Power |
Power Voltage |
AC100V~240V,50/60Hz |
| Standby Power/Rated Power |
≤3W/≤25W |
| Shell |
Metarial |
SPCC cold rolled steel |
| Exterior Color |
White/black/custom |
| Dimensions |
1249.6*739.2*122.2mm |
| Install |
Wall-mounted (default)/Destop/Rack-mounted Optional |
| Environment |
Working temperature/humidity |
0°C~50°C/20%~80% |
| Storage temperature/humidity |
-10°C~60°C/5--95% |
| Life Time |
60000hours |
| Certificates |
UL/CE/FCC/3C/RoHS |
| Touch Panel |
| Specification |
Infrared Touch |
| Touch Media |
Finger/touch pen opaque objects |
| Film categories |
Light membrane/fog film (default) |
Positioning
accuracy |
±2mm |
| Transmittance |
≥92% |
| Glass Hardness |
7H |
| Click Mode |
Two points |
| Response Time |
≤10ms |
| Output Resolution |
4096X4096 |
| Life Time |
Click life >=60M times |
| Interface |
USB(default)/serial /PS2 |
| Remarks |
1,Price condition:FOB Shenzhen,USD/SET |
| 2,Leading time-Sample :1-5working days,Bulk Order:5-10working days |
| 3,Payment terms:T/T |
|
4,Multi dots function:Support 3D model,Pictures,Video,Musics etc,
Multimedia contents enlarge,zoom,rotate. Can add operation functions according to customers need!
|
